MSI CG481-S6053
S6053G481RAU8
8x 400G QSFP / 9x PCIe 6.0 x16 / EPYC 9005
MSI

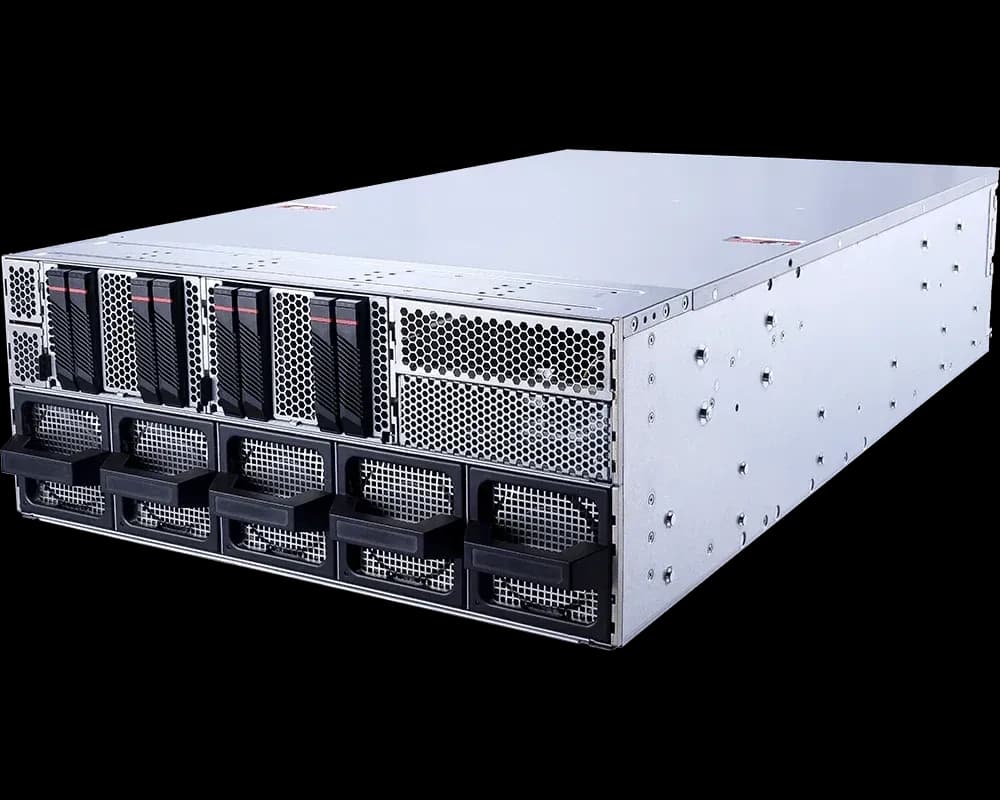

MSI CG480-S6053
S6053G480RAU8
The AMD EPYC 9005 version of the 4U MGX platform: thirteen PCIe 5.0 slots for up to eight accelerators, with 24 DIMM slots across 12 channels per CPU.
Overview
The same thirteen-slot 4U MGX chassis as the CG480-S5063, with dual AMD EPYC 9005 processors in place of Intel Xeon. Twelve memory channels per CPU rather than eight is the specification that matters most here: memory bandwidth is what usually limits a PCIe GPU server before the GPUs do.
Eight front hot-swap U.2 NVMe bays rather than twenty E1.S. Fewer drives, larger ones, and a more common form factor to source locally.
Available with or without NVMe RAID. The RAID variant carries an R suffix on the SKU and supports RAID 0 and 1, which matters if the node is holding the only copy of anything during a run.
Specifications
| Compute | |
|---|---|
| GPU | Up to 8x NVIDIA H200 NVL or RTX PRO 6000 Blackwell Server Edition (PCIe) |
| CPU | 2x AMD EPYC 9005 series, up to 500W TDP |
| Expansion Slots | Up to 13x PCIe 5.0 x16 |
| Memory | |
| System Memory | 24 DDR5 RDIMM, 12 channels per CPU (1DPC), up to 6400MT/s |
| Storage | |
| Drive Bays | 8x front hot-swap 2.5in U.2 PCIe 5.0 x4 NVMe, 2x M.2 PCIe 3.0 x2 |
| Networking | |
| Networking | 2x 10GBase-T (Intel X710-AT2, NCSI), 1x 1000Base-T management |
| Physical | |
| Form Factor | 4U rackmount, NVIDIA MGX architecture |
| Software | |
| Management | ASPEED AST2600, IPMI 2.0, DMTF Redfish, dual BIOS and BMC, TPM 2.0 |
Available Configurations
Manufacturer-supported options, shown for reference. Contact us to confirm a build.
- Storage controller
