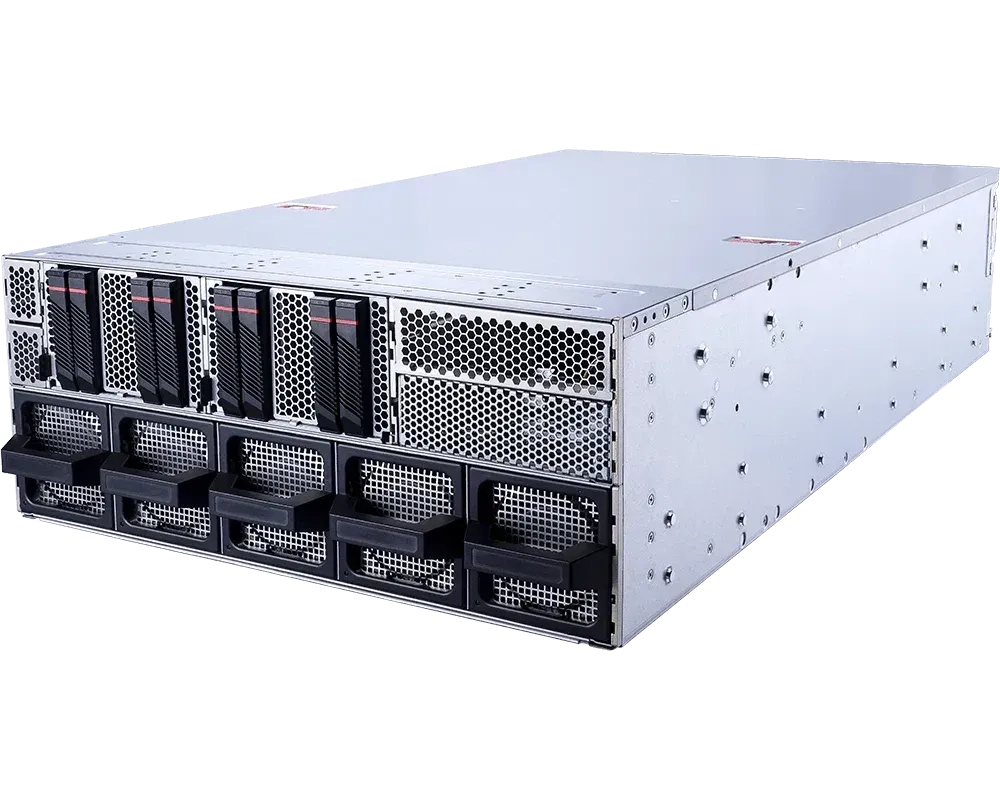

MSI CG481-S6053
S6053G481RAU8
The CG480 with the cluster fabric built in: eight 400G QSFP ports on NVIDIA ConnectX-8, at the cost of four expansion slots.
Overview

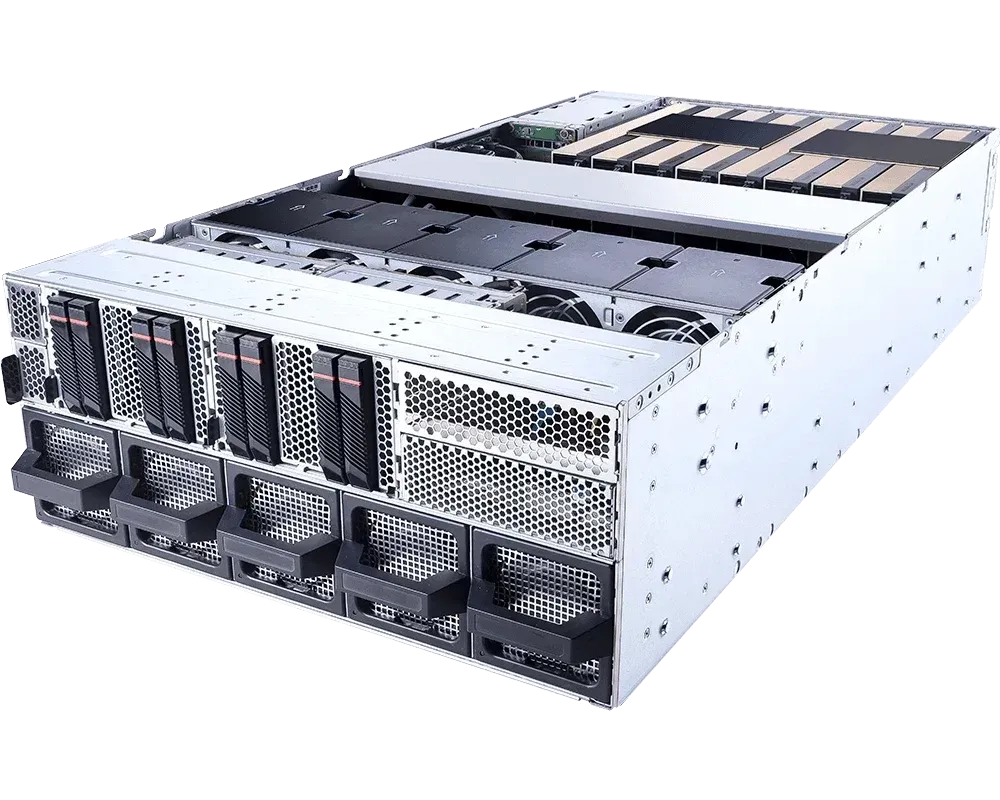

Mechanically the CG480-S6053 with one deliberate trade. Eight 400G QSFP ports on NVIDIA ConnectX-8 chipsets are integrated, and the slot count drops from thirteen to nine as a result.
That is the right trade for a node destined for a cluster. Fabric adapters that would otherwise consume four slots are already on the board, so the nine remaining slots are available for accelerators rather than being spent getting the accelerators talking to each other.
It is the only machine in this group with PCIe 6.0 slots. For a node being specified now against a five year life, that is worth knowing even if nothing in the current catalogue needs the bandwidth yet.
Specifications
| Compute | |
|---|---|
| GPU | Up to 8x NVIDIA H200 NVL or RTX PRO 6000 Blackwell Server Edition (PCIe) |
| CPU | 2x AMD EPYC 9005 series, up to 500W TDP |
| Expansion Slots | Up to 9x PCIe 6.0/5.0 x16 |
| Memory | |
| System Memory | 24 DDR5 RDIMM, 12 channels per CPU (1DPC), up to 6400MT/s |
| Storage | |

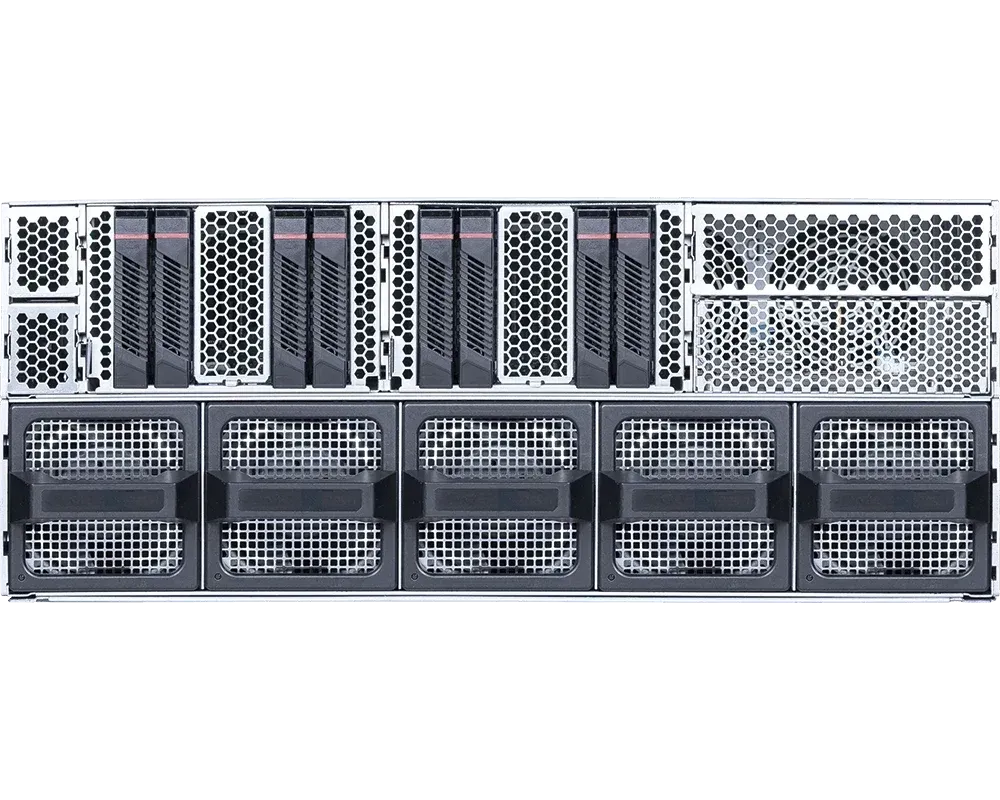

| Drive Bays | 8x front hot-swap 2.5in U.2 PCIe 5.0 x4 NVMe, 2x M.2 PCIe 3.0 x2 |
| Networking | |

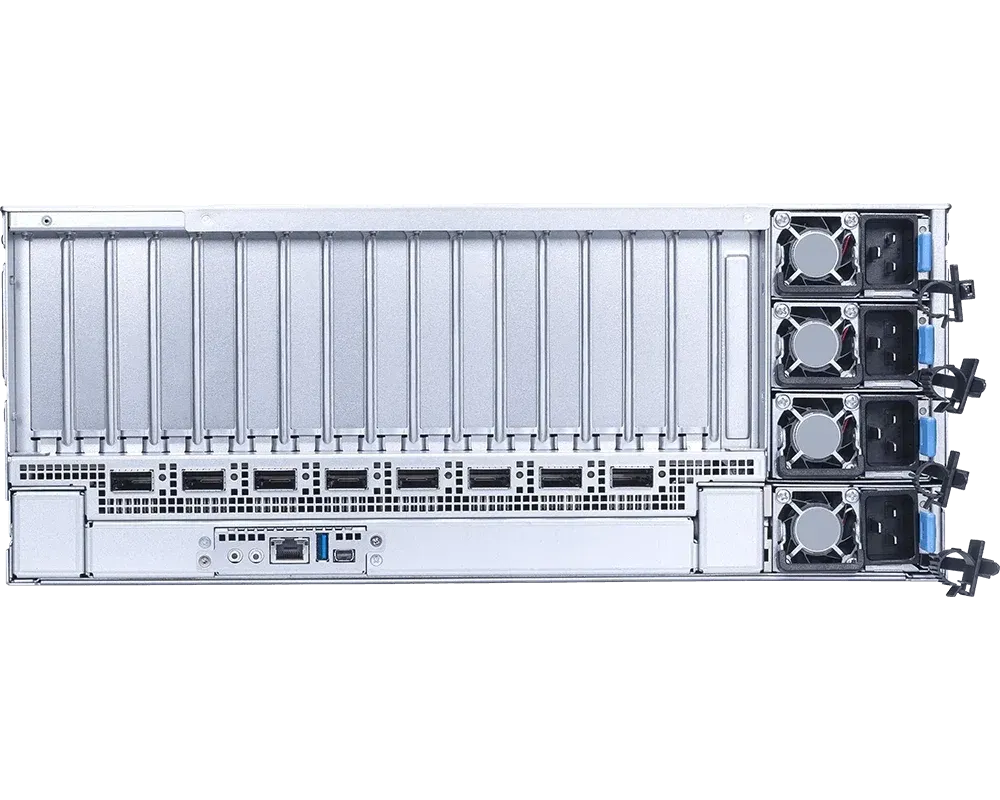

| Cluster Fabric | 8x 400G QSFP, NVIDIA ConnectX-8 |
| Networking | 1x 1000Base-T management |
| Physical | |

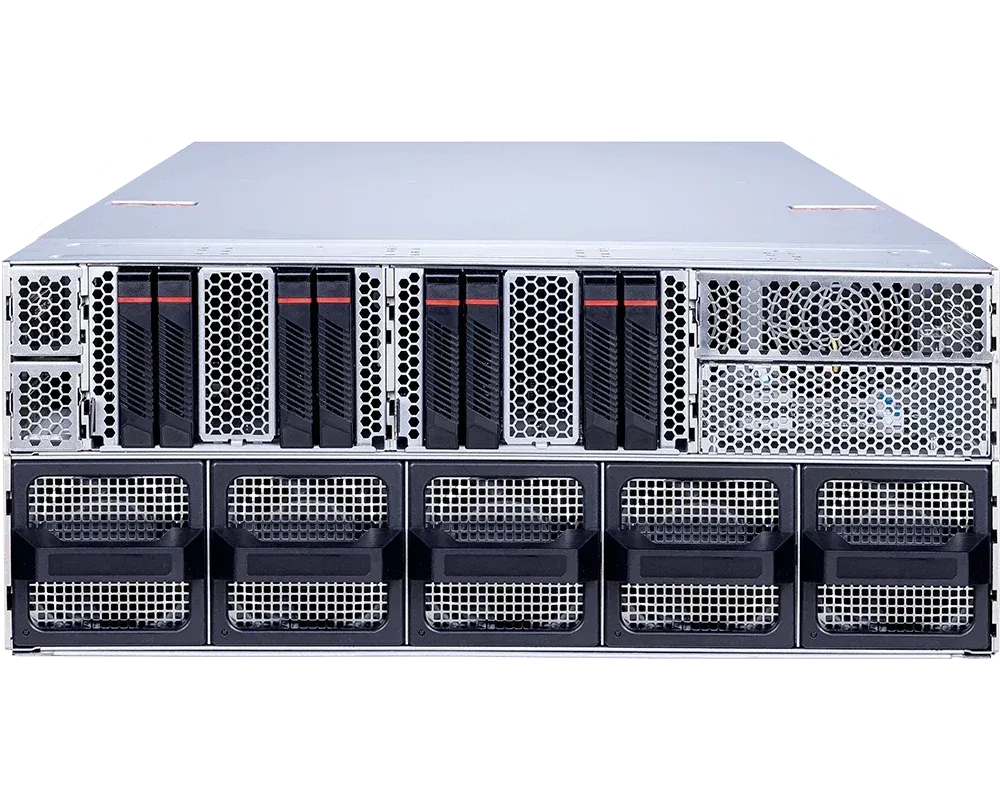

| Form Factor | 4U rackmount, NVIDIA MGX architecture |
| Software | |
| Management | ASPEED AST2600, IPMI 2.0, DMTF Redfish, dual BIOS and BMC, TPM 2.0 |
